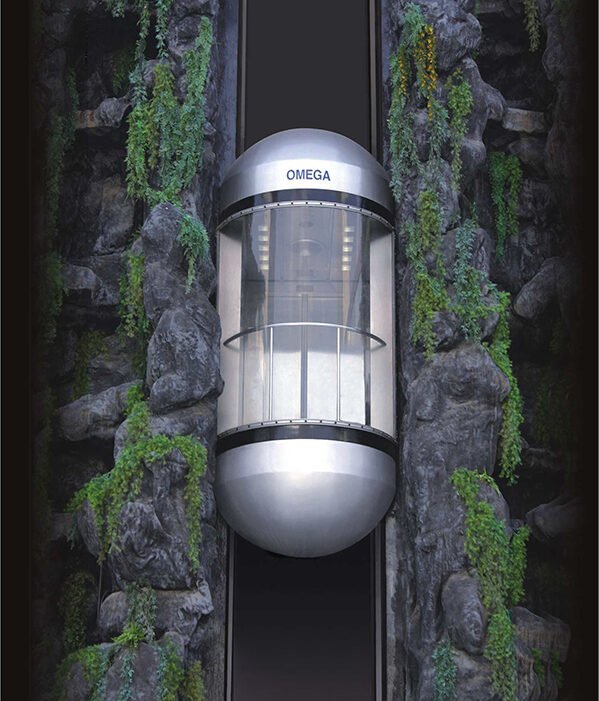

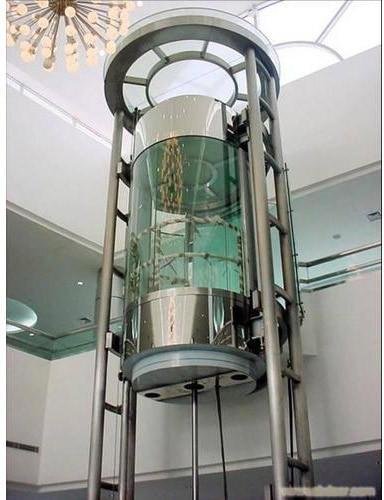

Capsule Lift

Elegen Elevators' capsule lifts are luxurious, aesthetic, and high-performance lifts designed to provide a smooth and visually appealing vertical transportation experience. They are ideal for residential buildings, commercial complexes, and hotels where design and functionality are equally important.Key features include:

• Aesthetic Design: Sleek, modern, and transparent cabin with glass walls offering panoramic views.
• Capacity Range: Typically from 4 to 12 passengers (up to 1,000 kg)
• Speed: Operates at speeds of 0.5 m/s to 2.5 m/s, providing a quick yet comfortable ride.
• Drive System: Gearless traction for smooth and noiseless operation.
• Customization: Available in multiple finishes, including stainless steel, wood paneling, and bespoke cabin designs.
• Lighting: Advanced LED lighting with customizable color schemes to match the interior decor.

Technical Specifications

• Drive Mechanism: The capsule lift operates using a gearless traction system, ensuring smooth, quiet, and efficient performance.
• Speed Range: It operates at speeds between 0.5 m/s and 2.5 m/s, providing a fast yet comfortable ride for passengers.
• Capacity: The lift can accommodate 4 to 12 passengers or up to 1,000 kg of weight, depending on the specific model and requirements.
• Cabin Design: The cabin features transparent glass walls, offering a panoramic view. It can be customized with various finishes, such as stainless steel, wood paneling, or other bespoke options, enhancing the aesthetic appeal.
• Overhead Clearance: Minimum 3000 mm for operation, customizable based on shaft design.
• Pit Depth: The minimum pit depth required for installation is 1500 mm.
• Power Consumption: The capsule lift is powered by energy-efficient motors, ensuring lower operational costs and reduced environmental impact.
• Roping System: It utilizes a 2:1 or 1:1 roping system, depending on the specific building requirements and space availability.

Safety Features

• Emergency Brake System: For added security in case of power failure or system malfunction.
• Overload Sensors: Prevents the lift from operating when it exceeds the weight capacity.
• Intercom System: For communication in case of emergency.
• Automatic Rescue Device (ARD): Ensures the lift returns to the nearest floor during power failure.

Applications

• Residential Buildings: Enhances the aesthetic value and convenience in high-end residential apartments.
• Commercial Complexes: Perfect for luxury malls, boutiques, and offices requiring a premium experience.
• Hotels & Resorts: Adds an element of elegance, perfect for vertical transportation in luxury environments.
